Description & Size Guide

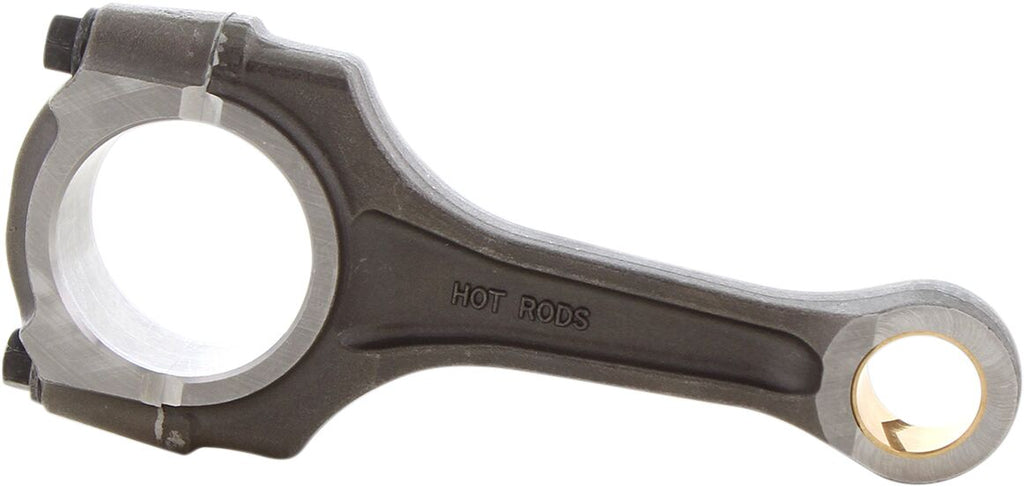

Connecting Rod KitHeavy-duty OE replacement connecting rods Certified 8620 AISI steel provides superior strength Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc Features the latest in caged needle roller bearing designs for high rpm longevity Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses Double honing produces an ultra-round bearing surface for reliability at high rpm Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers Compatible with Hot Rods and OE crankshafts Made in the USA Connecting Rod Big End I.D. 41.00 mm
Connecting Rod Big End Width: 24.250 mm
Connecting Rod Center-to-Center: 124.850 mm
Connecting Rod Small End I.D. 20.000 mm
Connecting Rod Small End Width: 20.300 mm
Heavy duty rod.
Kit Includes:
• Connecting Rod
• Rod Bolts
• Green Rod Bearings.Polaris GENERAL 1000 2016-2017 Polaris GENERAL 1000 4X4 2018-2019 Polaris GENERAL 4 1000 4X4 2019 Polaris RANGER RZR S 800 4X4 2014 Polaris RANGER XP 1000 4X4 2018-2019 Polaris RANGER XP 1000 CREW-6 4X4 2019 Polaris RZR RS1 1000 4X4 2018-2019 Polaris RZR S 1000 4X4 2017-2019 Polaris RZR XP 1000 4X4 2014-2019 Polaris RZR XP 4 1000 4X4 2014-2019
This item fits to following bikes.
