Description & Size Guide

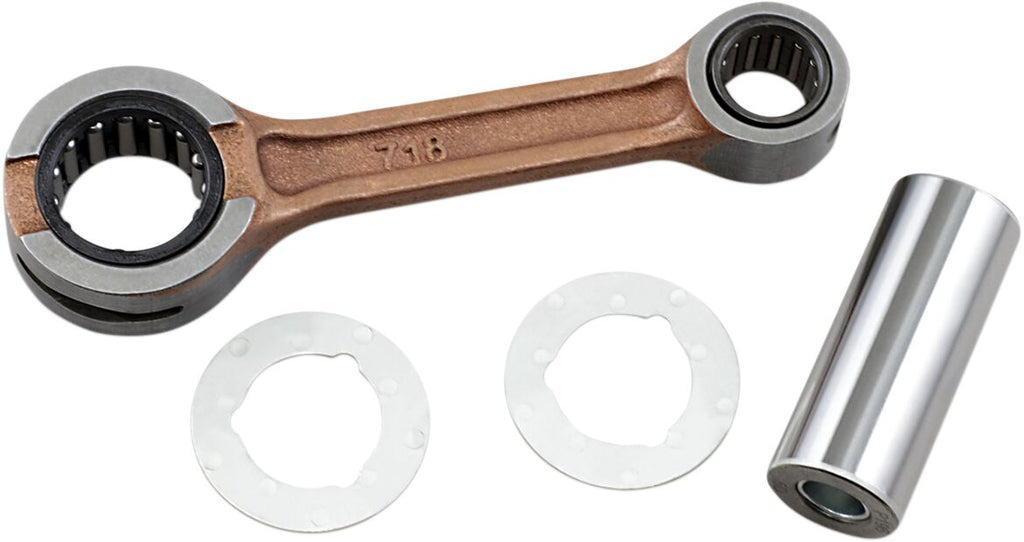

Connecting RodCertified 8620 AISI steel provides superior strength Uniquely designed big end uses strategically located side scalloping vent slots to minimize high-RPM bearing race distortion Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc Hot Rods uses the latest in caged needle roller bearing designs for high RPM longevity Thrust washers are manufactured from bronze phosphor and are silver coated Rod assembly sold complete with rod, crankpin, crankpin bearing, top-end bearing and thrust washers Compatible with Hot Rods and OE crankshafts Made in USA Connecting Rod Big End I.D. 29.000 mm
Connecting Rod Big End Width: 17.000 mm
Connecting Rod Center-to-Center: 102.000 mm
Connecting Rod Small End I.D. 19.000 mm
Connecting Rod Small End Width: 16.000 mm
Thrust Washer Thickness: 1.000 mm
Pin Length: 54.500 mm
Kit Includes:
• Connecting Rod
• Crank Pin
• Crank Pin Bearing
• Wrist Pin Bearing
• Thrust WashersYamaha YZ 125 2005-2021
This item fits to following bikes.
