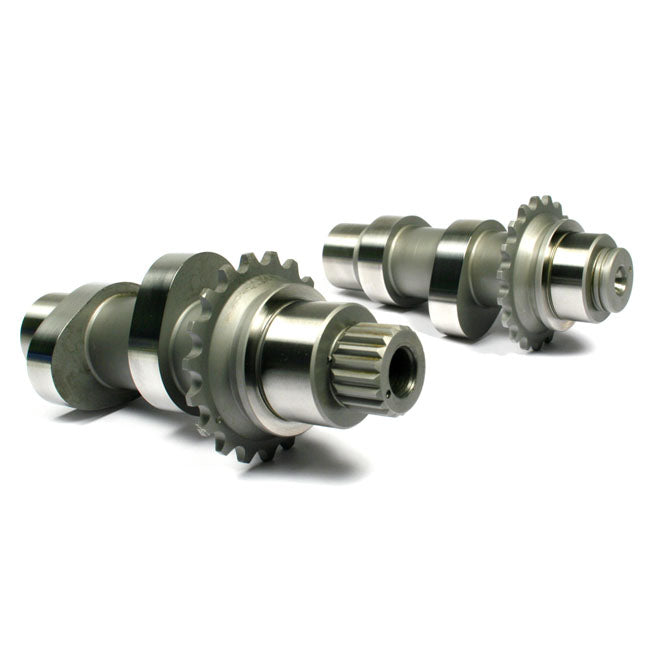

Twin Cam Camshafts - 594 For TC '99 - '06

594 CAMS - Fierce performing camshaft for an array of engines sizes, large displacement 103", 110" & 124" engines looking for a superior torque band with excellent horsepower gains in heavy bikes (RPM 2,200 - 6,250.) Smaller high revving displacement 95" style engines in lighter bikes looking to twist the throttle and tap into some horsepower (RPM 2,500 - 6,800). Large displacements respond well to increased compression ratio and smaller displacements will require it. 594 cams require high performance valve springs, pushrods, lifters, carburetor and or throttle body work, performance exhaust, intake and clutch. UPDATE YOUR OLD MECHANICAL STYLE CAMS AND TENSIONERS TO THE NEW HYDRAULIC STYLE TENSIONER SYSTEM Conversion camshafts for ’99-’06 Twin Cam engines utilize the ’99-’06 inner cam journals with the ’07-’16 outer cam journals allowing the use of the ’07-’16 camplates, oil pump, hydraulic chain tensioners and chain drive system. *Conversion camshafts do not fit in a conversion camplate, conversion camshafts use the '07-'17 camplate/oil pump Twin Cam 'Conversion' Chain Drive ’99 – ’06 (Except ’06 Dyna) Part # 1016¹ - (525CC Conversion Cam) - 525" Intake, 535" Exhaust Part # 1015¹ - (543CC Conversion Cam) - 543" Intake, 553" Exhaust Part # 1017¹ - (574CC Conversion Cam) - 574" Intake, 574" Exhaust Part # 1019¹ - (594CC Conversion Cam) - 594" Intake, 604" Exhaust Part # 1018¹ - (630CC Conversion Cam) - 630" Intake, 630" Exhaust ¹Factory hydraulic tensioners, outer cam & crank sprockets and thrust washers required, purchased separately - See #8080 & #8083 REQUIRED COMPONENTS FOR CONVERSION CAMSHAFTS - SEE KIT #8080 & 8083 / #7087 & 7088 Installing conversion camshafts in '99-'06 style T/C engines, require use the '07-'17 style camplate and oil pump along with the following: Qty. 1 FEULING #8061 HD # 25675-06 Outer chain Qty. 1 FEULING #8060 HD # 25683-06 Inner chain Qty. 1 FEULING #1091 HD # 25673-06 Outer crank sprocket 17 tooth Qty. 1 FEULING #1092 HD # 25728-06 Outer cam sprocket 34 tooth Qty. 1 FEULING #8075 HD # 39968-06 Outer hydraulic tensioner unit Qty. 1 FEULING #8076 HD # 39969-06 Inner hydraulic tensioner unit 1 - Bolt kit (2 - 1/4-20 x 3/4") (2 - 1/4-20 x 1-1/4") Qty. 1 FEULING #8041 Spacer kit Includes the following note installation requires qty. 2 of the following spacers, NOTE: correct spacer thickness is a must for proper sprocket alignment 1-# 25729-06 Thrust washer - front cam .100 1- # 25731-06 Spacer (.110 for cam alignment; use as required) 1 - #25734-06 Spacer (.120 for cam alignment; use as required) 1 - #25736-06 Spacer (.130 for cam alignment; use as required) 1 - #25737-06 Spacer (.140 for cam alignment; use as required) 1 - #25738-06 Spacer (.150 for cam alignment; use as required) NOTE: '99-'01 engines with Magneti Marelli ignition requires use of Andrews sprocket #216015 in replacement of HD 34 tooth sprocket #25728-06 in order to install the new style outer cam chain Note: Special Order Product only. To order please contact your MCS sales representative.
