Description & Size Guide

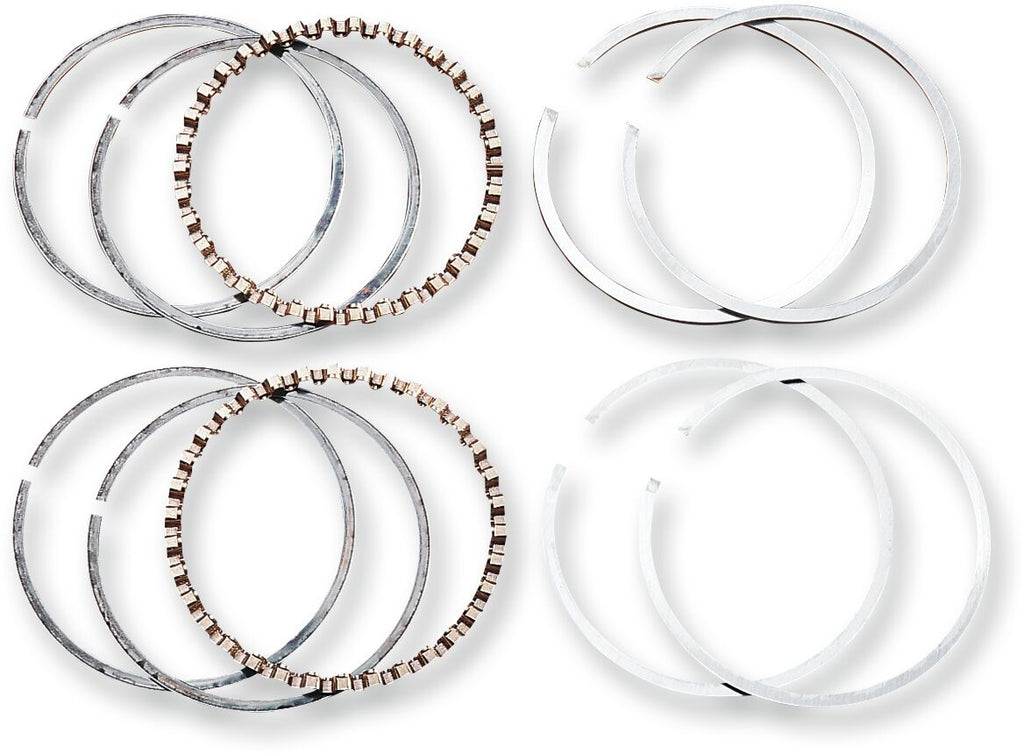

Replacement Piston RingsIncludes top compression rings, second compression rings, and oil control rings Top Compression Rings are Barrel Face Helps in the the heat transfer process between the piston and cylinder wall Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft Second Compression Ring are Reverse Torsional Taper Face Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring Oil Control Rings are Three Piece Flex Vent Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore Provides uniform pressure through four steel rails and two expanders assuring positive oil control Made in the USA Due to the thermal conductivity and design of KB pistons, special attention is required to the top ring end gap. Please read instructions furnished with piston for correct ring installation. Includes enough rings for two pistons (unless noted). Two rings per groove, except for the rails that will be two rail rings per one expander ring. Kit Includes:
• 2x Top Compression Rings
• 2x Second Compression Rings
• 2x Expander Rings
• 4x Steel RailsHarley Davidson FLH 1984-1985 Harley Davidson FLH 1340 1984 Harley Davidson FLHR 1340 1994-1998 Harley Davidson FLHRCI 1340 EFI 1998 Harley Davidson FLHRI 1340 EFI 1996-1997 Harley Davidson FLHS 1340 1987-1993 Harley Davidson FLHT 1340 1983-1998 Harley Davidson FLHTC 1340 1983-1998 Harley Davidson FLHTCI 1340 EFI 1996-1998 Harley Davidson FLHTCU 1340 1989-1997 Harley Davidson FLHTCUI 1340 EFI 1995-1998 Harley Davidson FLHX 1340 1984-1985 Harley Davidson FLST 1340 1986-1990 Harley Davidson FLSTC 1340 1988-1999 Harley Davidson FLSTF 1340 1990-1999 Harley Davidson FLSTN 1340 1993-1996 Harley Davidson FLSTS 1340 1997-1999 Harley Davidson FLT 1340 1984 Harley Davidson FLTC 1340 1983-1991 Harley Davidson FLTCU 1340 1989-1996 Harley Davidson FLTRI 1340 EFI 1998 Harley Davidson FXD 1340 1995-1998 Harley Davidson FXDB 1340 1991-1992 Harley Davidson FXDC 1340 1992 Harley Davidson FXDL 1340 1993-1998 Harley Davidson FXDS-CON 1340 1994-1998 Harley Davidson FXDWG 1340 1993-1998 Harley Davidson FXE 1340 1983-1984 Harley Davidson FXLR 1340 1987-1994 Harley Davidson FXR 1340 1986-1994 Harley Davidson FXR 1340 II 1983 Harley Davidson FXR2 1340 1999 Harley Davidson FXR3 1340 1999 Harley Davidson FXR4 1340 2000 Harley Davidson FXRC 1340 1985-1987 Harley Davidson FXRD 1340 1986 Harley Davidson FXRDG 1340 1984 Harley Davidson FXRP 1340 1984-1989 Harley Davidson FXRS 1340 1984-1992 Harley Davidson FXRS CON. 1340 1990-1993 Harley Davidson FXRS-SP 1340 1986-1993 Harley Davidson FXRT 1340 1984-1992 Harley Davidson FXSB 1340 1985 Harley Davidson FXST 1340 1985-1999 Harley Davidson FXSTB 1340 1999 Harley Davidson FXSTC 1340 1986-1999 Harley Davidson FXSTS 1340 1988-1999 Harley Davidson FXSTSB 1340 1995-1997 Harley Davidson FXWG 1340 1984-1986 Harley Davidson XL 1200 C 1996-2003 Harley Davidson XL 1200 S 1996-2003 Harley Davidson XLH 1200 1988-2003
This item fits to following bikes.
