Description & Size Guide

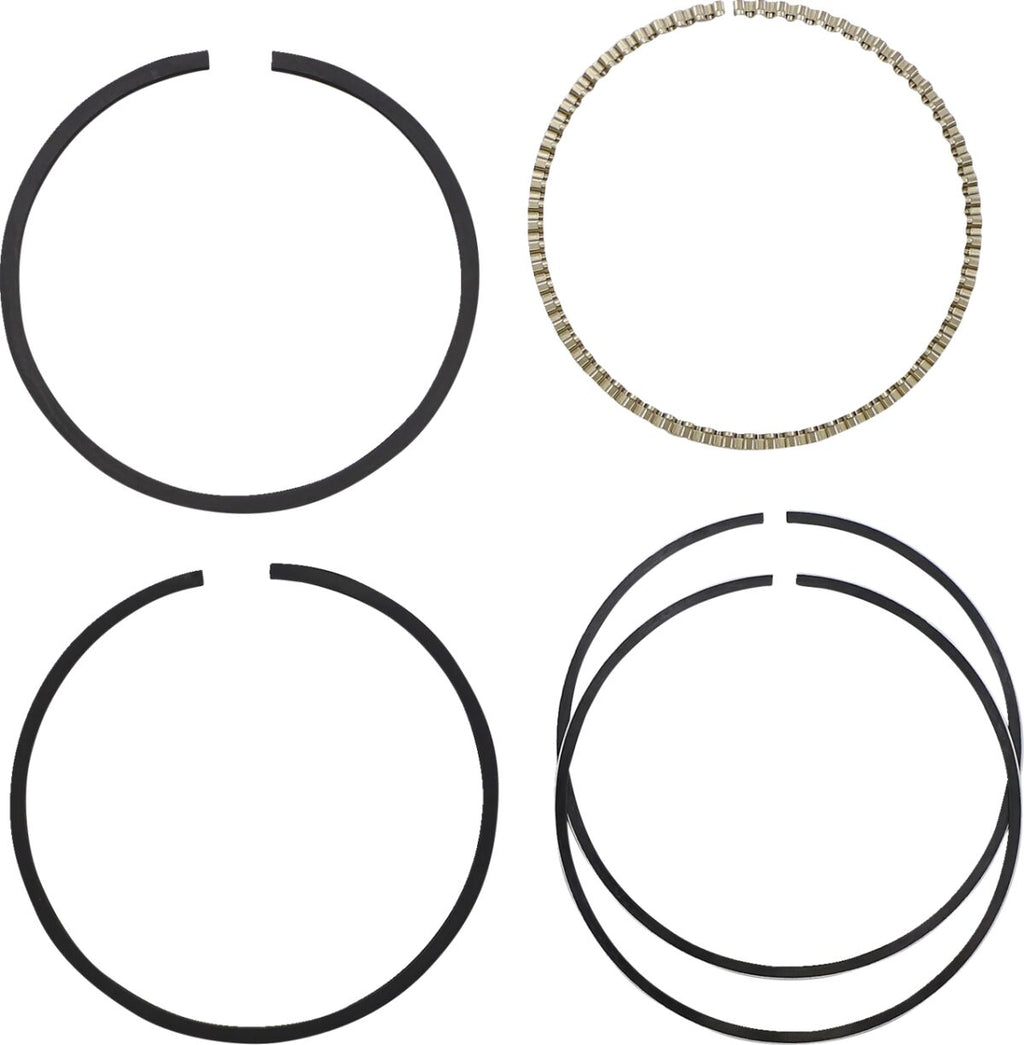

Replacement Piston RingsIncludes top compression rings, second compression rings, and oil control rings Top Compression Rings are Barrel Face Helps in the the heat transfer process between the piston and cylinder wall Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft Second Compression Ring are Napier Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy Oil Control Rings are Three Piece Flex Vent Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore Provides uniform pressure through four steel rails and two expanders assuring positive oil control Made in the USA Includes enough rings for two pistons (unless noted). Two rings per groove, except for the rails that will be two rail rings per one expander ring. Must order two sets for a complete motor.
Kit Includes:
• 1x Top Compression Ring
• 1x Second Compression Ring
• 1x Expansion Ring
• 2x Rail RingsHarley Davidson XL 1200 C 2004-2020 Harley Davidson XL 1200 C ABS 2014-2020 Harley Davidson XL 1200 CA ABS 2014-2016 Harley Davidson XL 1200 CB ABS 2014-2017 Harley Davidson XL 1200 CX 2018-2020 Harley Davidson XL 1200 CX ABS 2018-2020 Harley Davidson XL 1200 NS 2021 Harley Davidson XL 1200 NS ABS 2018-2021 Harley Davidson XL 1200 T 2018-2019 Harley Davidson XL 1200 T ABS 2018-2020 Harley Davidson XL 1200 X 2018-2022 Harley Davidson XL 1200 X ABS 2018-2022 Harley Davidson XL 1200 X ABS 2018 Harley Davidson XL 1200 XS ABS 2018-2020
This item fits to following bikes.
