Description & Size Guide

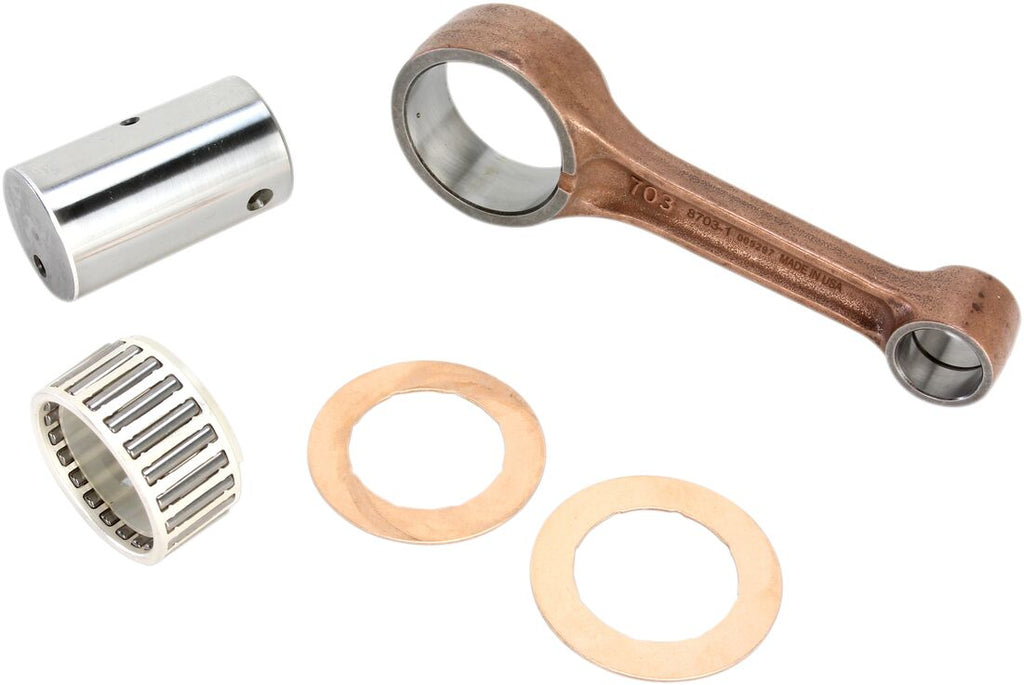

Connecting Rod KitHeavy-duty OE replacement connecting rods Certified 8620 AISI steel provides superior strength Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc Features the latest in caged needle roller bearing designs for high rpm longevity Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses Double honing produces an ultra-round bearing surface for reliability at high rpm Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers Compatible with Hot Rods and OE crankshafts Made in the USA Connecting Rod Big End I.D. 43.000 mm
Connecting Rod Big End Width: 22.000 mm
Connecting Rod Center-to-Center: 121.500 mm
Connecting Rod Small End I.D. 20.000 mm
Connecting Rod Small End Width: 22.000 mm
Thrust Washer Thickness: 1.00 mm
Pin Length: 61.800 mm
Kit Includes:
• Connecting Rod
• Crank Pin
• Crank Pin Bearing
• Thrust WashersYamaha YFM 450 D 4X4 2014 Yamaha YFM 450 DH 4X4 2014 Yamaha YFM 450 FA 4X4 2003-2014 Yamaha YFM 450 FA SE 4X4 2005-2006 Yamaha YFM 450 FAH 4X4 2003-2006 Yamaha YFM 450 FG 4X4 2007-2013 Yamaha YFM 450 FG OH 4X4 2007 Yamaha YFM 450 FG SE 4X4 2007 Yamaha YFM 450 FG SP 4X4 2008 Yamaha YFM 450 FGH 4X4 2007-2013 Yamaha YFM 450 FGP 4X4 2011-2013 Yamaha YFM 450 FGPH 4X4 2011-2013 Yamaha YFM 450 FWAN 4X4 2012-2014 Yamaha YFM 450 FX 4X4 2006-2010 Yamaha YFM 450 FX SE 4X4 2007-2008 Yamaha YFM 450 P 4X4 2014 Yamaha YFM 450 PH 4X4 2014 Yamaha YXR 450 F 4X4 2007-2009 Yamaha YXR 450 F SE 4X4 2007 Yamaha YXR 450 F SP 4X4 2008 Yamaha YXR 450 FA 4X4 2006 Yamaha YXR 450 FAH 4X4 2006 Yamaha YXR 450 FH 4X4 2007-2009
This item fits to following bikes.
