Connecting Rod KitHeavy-duty OE replacement connecting rods Certified 8620 AISI steel provides superior strength Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc Features the latest in caged needle roller bearing designs for high rpm longevity Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses Double honing produces an ultra-round bearing surface for reliability at high rpm Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers Compatible with Hot Rods and OE crankshafts Made in the USA Connecting Rod Big End I.D. 31.000 mm
Connecting Rod Big End Width: 16.900 mm
Connecting Rod Center-to-Center: 132.000 mm
Connecting Rod Small End I.D. 22.000 mm
Connecting Rod Small End Width: 16.900 mm
Thrust Washer Thickness: 1.000 mm
Pin Length: 59.900 mm

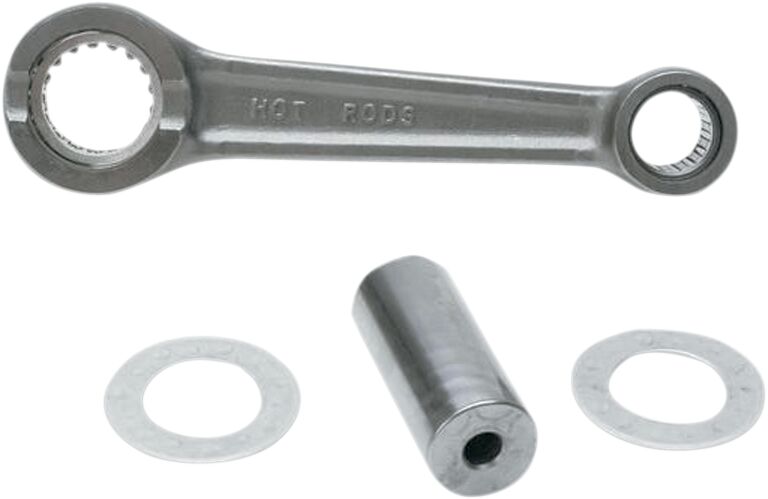

Kit Includes:
• Connecting Rod
• Crank Pin
• Crank Pin Bearing
• Wrist Pin Bearing
• Thrust WashersKTM EGS 250 1993-1999 KTM EGS 300 1993-1997 KTM EXC 250 1993-1999 KTM EXC 300 1990-2003 KTM MXC 250 1990-1999 KTM MXC 300 1993-2003 KTM SC 250 1995 KTM SC 300 1995 KTM SX 250 1993-1999 KTM SX 300 1993-1995
This item fits to following bikes.
