Description & Size Guide

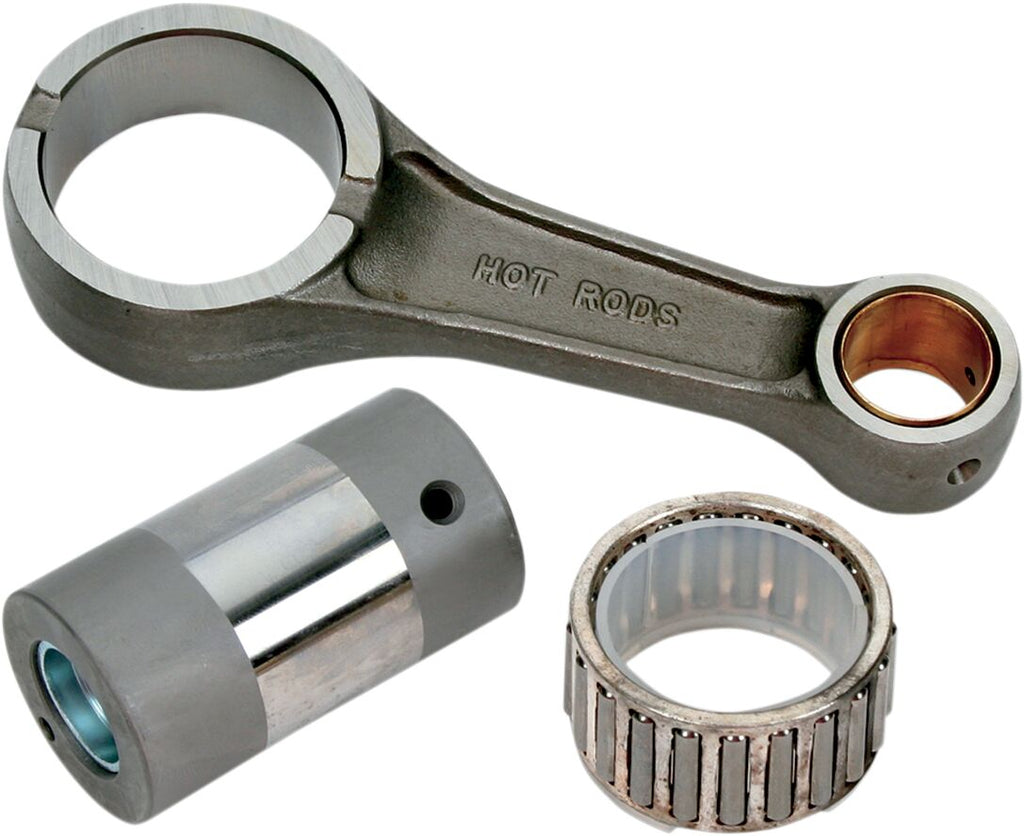

Connecting Rod KitHeavy-duty OE replacement connecting rods Certified 8620 AISI steel provides superior strength Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc Features the latest in caged needle roller bearing designs for high rpm longevity Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses Double honing produces an ultra-round bearing surface for reliability at high rpm Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers Compatible with Hot Rods and OE crankshafts Made in the USA Connecting Rod Big End I.D. 43.000 mm
Connecting Rod Big End Width: 21.800 mm
Connecting Rod Center-to-Center: 107.000mm
Connecting Rod Small End I.D. 20.000 mm
Connecting Rod Small End Width: 20.000 mm
Pin Length: 61.800 mm
Kit Includes:
• Connecting Rod
• Crank Pin
• Crank Pin BearingArctic Cat (Textron) 400 2X4 2004-2008 Kawasaki KFX 400 2X4 2003-2006 Kawasaki KLX 400 R 2003 Kawasaki KLX 400 SR 2003 Suzuki DR-Z 400 2000-2005 Suzuki DR-Z 400 E 2000-2007 Suzuki DR-Z 400 S 2000-2013 Suzuki DR-Z 400 SM 2005-2013 Suzuki LT-Z 400 2X4 2003-2013 Suzuki LT-Z 400 Z 2x4 2004-2012
This item fits to following bikes.
